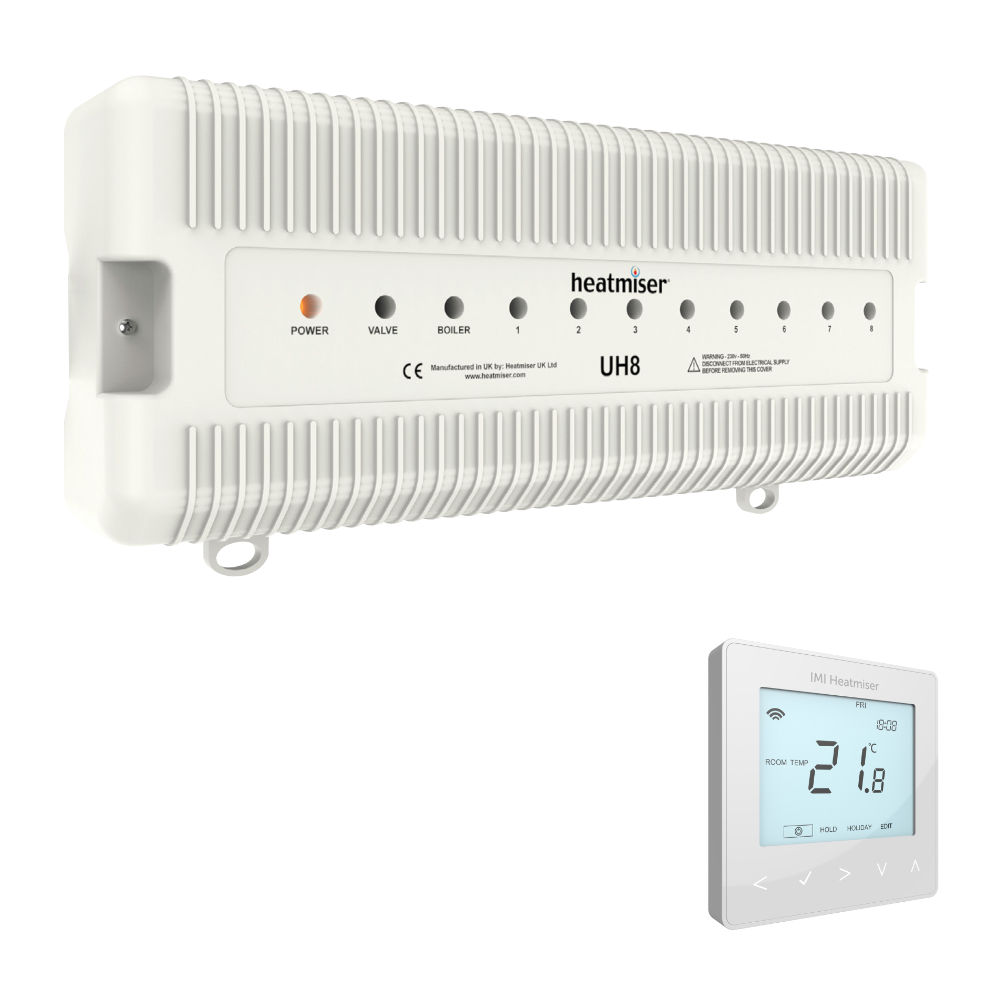

Heatmiser UH8 – 8 Zone 230v Wiring Centre

Item Description:

The Heatmiser UH8 is designed to work with our 4 channel 230v time clock (TM4) and 230v Set back thermostat (DS-SB) but equally could be used with any 230v room thermostat.

Up to 8 zones can be controlled from the UH3. On board the UH8 are two heating time channels, each zone allows you to specify which time channel it should follow. 2 additional time channel connections are provided for hot water control or other auxiliary devices. On demand from any zone, a 230v output is provided to switch the relevant zone actuator, underfloor heating pump and valve. A volt free connection is supplied for the boiler, making it compatible with almost all types of boilers.

A simple slide switch makes zone 8 suitable for controlling a radiator zone. When used for controlling radiators, zone 8 does not enable the underfloor heating pump, valve and boiler. Up to 4 actuators can be connected to each zone.

Item Specifications:

• The UH8 provides central switching of up to 8 zone actuators
• Output for a hot water cylinder and the system boiler and pump.
• UH Dimensions 384x148x60mm

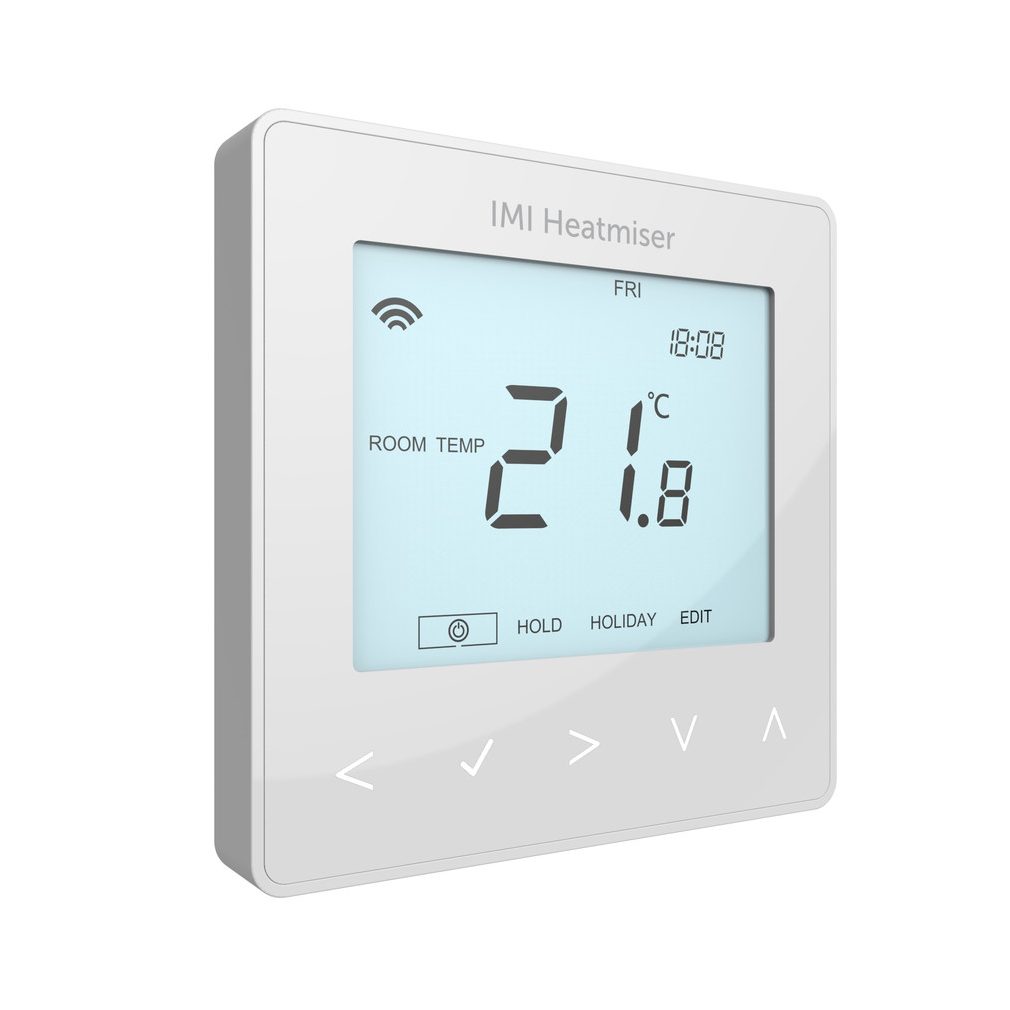

Heatmiser NeoStat v2 230v Wired Smart Thermostat for Water Underfloor Heating – Works With neoHub

Item Description:

The Heatmiser neoStat offers you a smarter way to control your heating from anywhere!

The neoStat is a 230v powered thermostat with a volt free switch. The neoStat communicates to the neoHub and other neoStats within your home, to create a fully controllable network system of your home heating.

Simple installation is key with Neo. neoStat has been designed to replace an existing three wire thermostat, and after joining the zone to the neoHub, remote control is possible.

The neoStat can be configured to work as a thermostat or as a timer- so if you want to take control of your towel rails, or lighting – Neo offers you this and more!

Hub Sold Separately:

Item Specifications & Features:

• Stunning design
• White Back light with Proximity sensor
• Illuminated soft touch keys with Proximity sensor
• User Selectable Operating Mode: 1) Non Programmable 2) Weekday/Weekend 3) All days different. 4) All days the same
• 5 Minute Program Intervals
• 0.5C Set Temp (eg 20.5C)
• Self Learning Optimum Start
• 4 Comfort Levels per Day  (Option for 6 when paired to neoHub)
• Temperature Hold Facility
• Holiday Facility
• Automatic White Back Light (Turns off after 30 seconds)
• Flush Mounting
• C/F Selectable
• Key Code Facility
• Frost Protection
• Compatible with 10K, 12K, 15K NTC Floor Probes

ErP Class & Ratings
