Wet Underfloor Heating Screed Kit – Multi Zone Room Kit With Wilo A-Rated Pump & 5 Layer Pipe – 20 to 200 SQM Coverage

Standard output easy to install water underfloor heating multi zone systems with the NEW Grundfos UPM3 Pump.

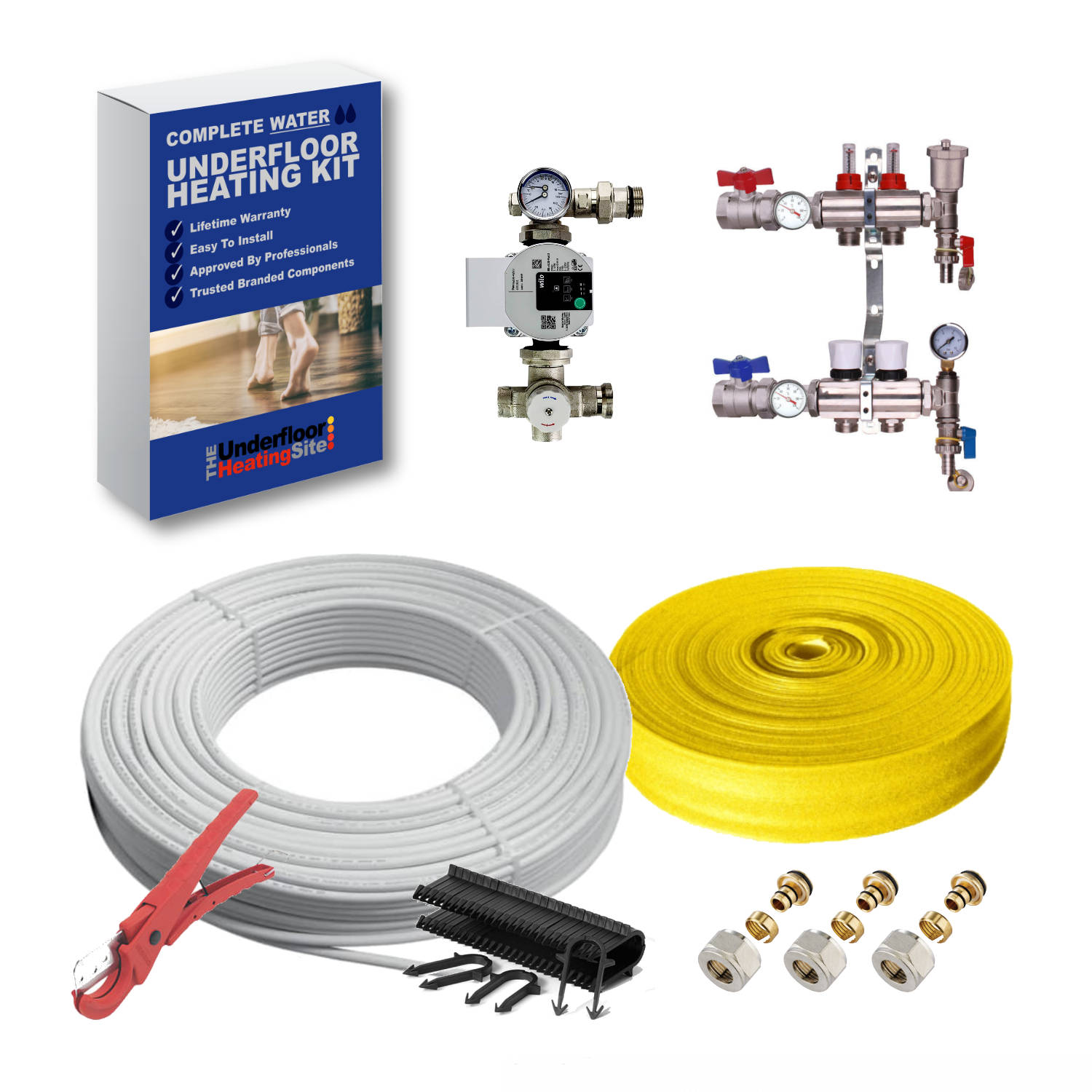

Included in package (see chart below for m2 quantities):

1. Complete Manifold Kit with flow meters, temperature gauge and Pressure Gauge, pre-mounted onto installation bracket.
2. Wilo Pump (‘A’ rated, Grant Yonos Para Pump RS 25/6)
3. 100m reel Pert-Al-Pert Pipe, 16mm x 2mm, 5 Multilayers
4. Edge insulation to be used around the edge of rooms.
5. Pipe Cutter.
6. Pipe Staple Clips, compatible with tracker gun or use manually to clip.

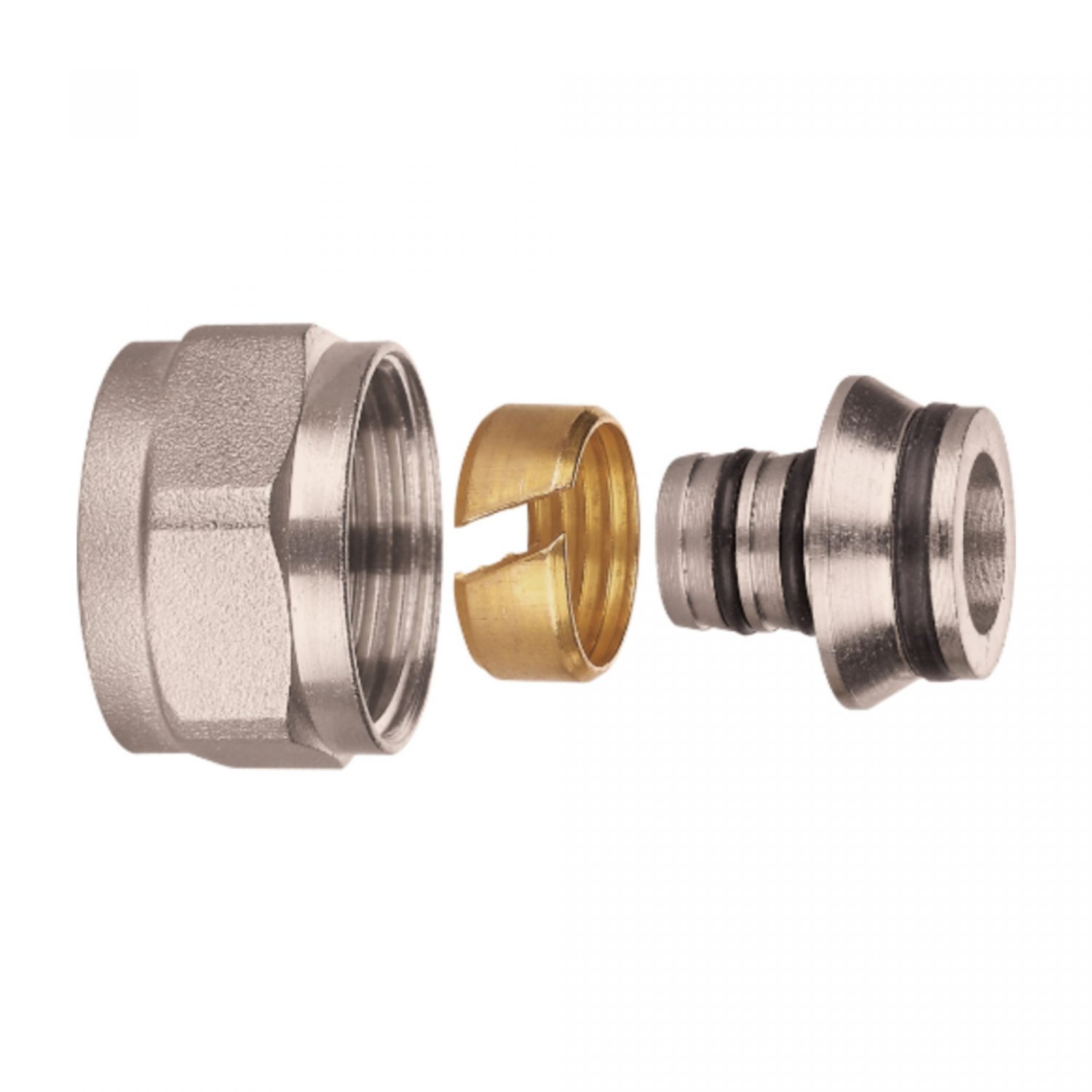

7. Eurocone Connectors to connect pipe to manifold 16mm x 2mm
8. Temperature Gauge and Pressure Gauge comes with the Manifold.
9. Pipe tool to help with installation
10. Blending Valve.

Options not included in package:

1. Actuators – 1 per port (sold separately)
2. Thermostat of your choosing  (sold separately)

Key Features

• Supplied pre-mounted on installation brackets
• Connections are eurocones and a range of fittings are available to suit most UK pipe sizes
• Usual working temperature 82 C
• Max working temperature 105 C
• Max working pressure 3 bar
• Max test pressure 10 bar
• Easy Fitting
• Manufactured to highest standards to meet all UK and EU standards
• Pipe with 40 years warranty
• Pump Pack – Wilo Underfloor Heating Pump Grant Yonos Para Pump RS 25/6 with Mixer Blending Valve
• Grundfos A-rated Pump UPM3(brand new, 2017 latest model), EuP/ErP Ready.
• Mixer Set Blending Valve
• Thermostatic control the flow temperature of water to the underfloor heating pipe.
• Temperature range: 35C – 65C
• Max working pressure: 10 bar
• Compression type connections for ease of installation

Size Chart
