8 Port Premium Brass Bodied Underfloor Heating Manifold With Temperature Gauge, Isolation Valves, Auto Air Vent & Pipe Connectors
8 Port Premium Brass Bodied Underfloor Heating Manifold With Temperature Gauge, Isolation Valves, Auto Air Vent & Pipe Connectors - Image 2
8 Port Premium Brass Bodied Underfloor Heating Manifold With Temperature Gauge, Isolation Valves, Auto Air Vent & Pipe Connectors - Image 3
8 Port Premium Brass Bodied Underfloor Heating Manifold With Temperature Gauge, Isolation Valves, Auto Air Vent & Pipe Connectors - Image 4
8 Port Premium Brass Bodied Underfloor Heating Manifold With Temperature Gauge, Isolation Valves, Auto Air Vent & Pipe Connectors - Image 5

8 Port Premium Brass Bodied Underfloor Heating Manifold With Temperature Gauge, Isolation Valves, Auto Air Vent & Pipe Connectors

£259.99 inc. VAT

Add to wishlist
SKU: ZL-112508TK- Category: Tags: , , , ,

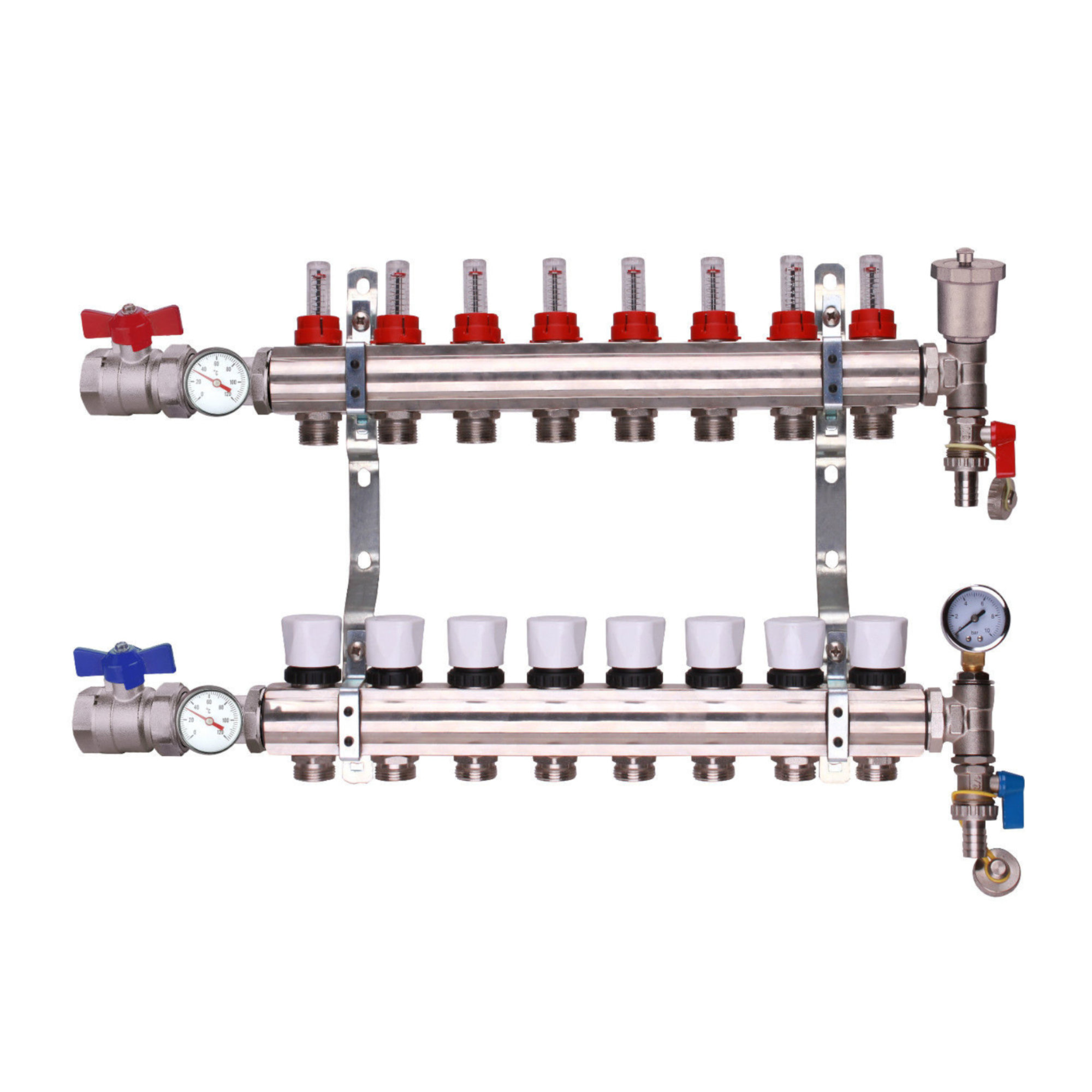

8 Port Premium Underfloor Heating Manifold With Temperature Gauge, Isolation Valves, Auto Air Vent & Pipe Connectors

Our underfloor heating manifolds have brass bodies giving them excellent performance and reliability.

These premium manifolds are manufactured to the international manufacturing standard ISO9001 to ensure quality at all times.

Available with a choice of pipe connectors to fit most Pert-Al-Pert and EVOH pert pipe sizes – Please select the size you require when ordering.

Our premium manifolds come with:

  • 1x flow manifold & 1x return manifold
  • A Flow meter per port
  • An Isolation valve per port
  • Isolation ball valves with temperature gauge
  • Drain & fill points
  • Automatic air vents
  • Pre-fitted mounting bracket
  • Eurocone pipe connectors (please select the size you require)
Ports & Area

2 Ports – For Area Up To 40m2, 3 Ports – For Area Up To 60m2, 4 Ports – For Area Up To 80m2, 5 Ports – For Area Up To 100m2, 6 Ports – For Area Up To 120m2, 7 Ports – For Area Up To 140m2, 8 Ports – For Area Up To 160m2, 9 Ports – For Area Up To 180m2, 10 Ports – For Area Up To 200m2, 11 Ports – For Area Up To 220m2, 12 Ports – For Area Up To 240m2

Manifolds technical Data

Technical data
 Material Nickel plated brass
 Usual working temperature 82°c
 Maximum working pressure 10bar
 Maximum working temperature 105°c
 Maximum test pressure 10bar
 Suitable For Water
 Manufacturing Standards ISO9001, ISO14001, CE, TUV SUD, WRAS
