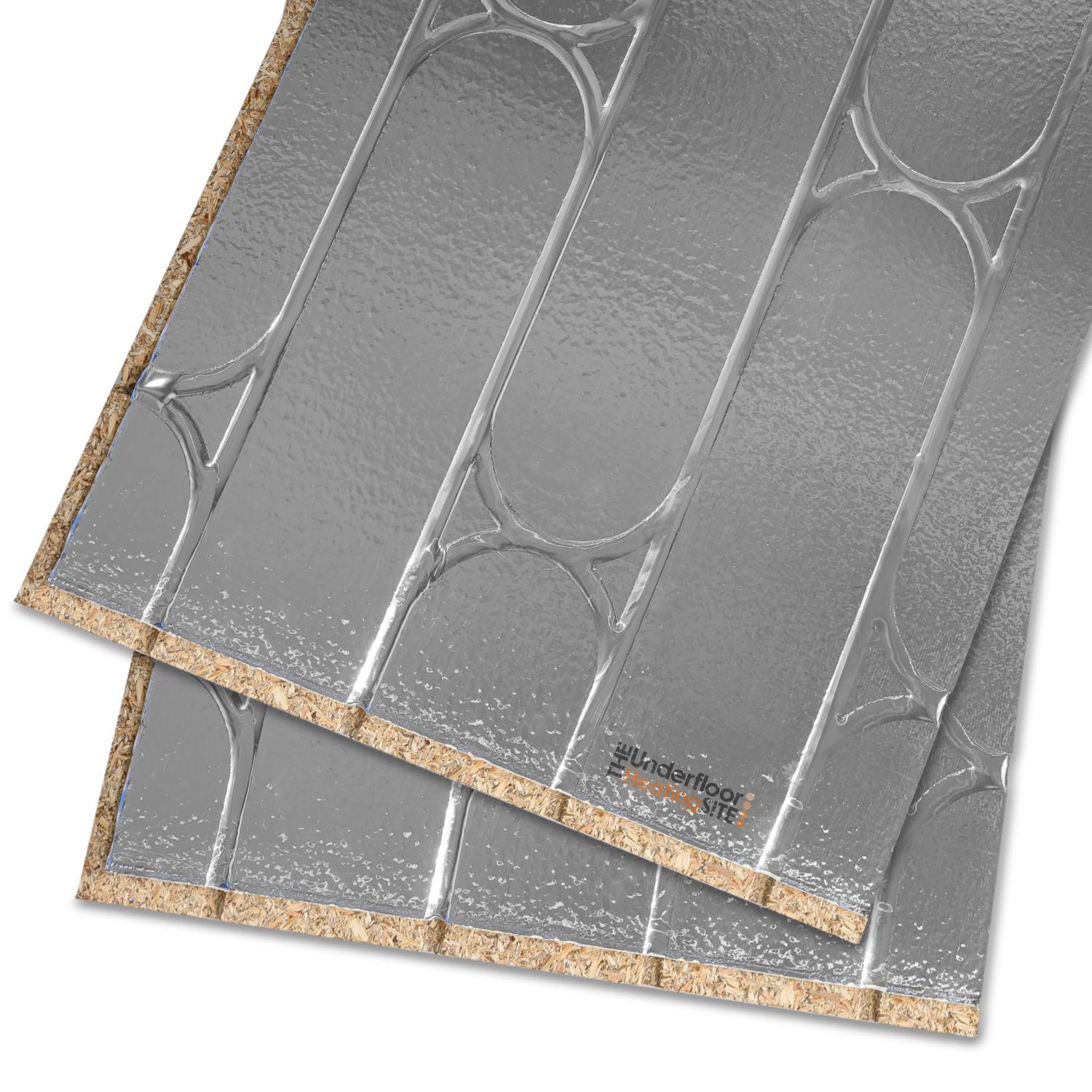

22mm Foiled Grooved Chipboard Underfloor Heating Overlay Boards – 2400mm x 600mm x 22mm – Foiled For 12mm Pipe

Underfloor Heating Boards – grooved chipboard for underfloor heating 22mm pre routed

• Tongue and groove for faster installation all the way around – true TG4
• P5 Moisture Resistant Chipboards
• 1.44m2 Per Board for use with 12mm or 16mm Pipe Only
• Routed with 150mm or 200m centres
• Feed pipes typically run underneath
• A 6mm cement board must be glued and screwed as per manufacturers instruction to bring back structural strength before fitting finished floors
• Options for foiled and bonded thermal or acoustic insulation

Technical Data:

• Thermal Conductivity: 0.033 W/mK (when bonded to XPS)
• Moisture Absorption: 0.6%
• Widths Available: 600mm
• Lengths Available: 1200mm / 2400mm
• Dimensional Tolerances: (+/-1mm)
• Compressive Strength: 300kPa, 500kPa

Moisture resistant routed chipboard, available standard, foiled, or bonded to additional thermal or acoustic insulation. Our Chip-UFH Board is highly conductive which allows for an even spread of heat throughout the floor. System should be completed with 6mm cement backer board, further details available on request.

INSTALLATION Chip-UFH Board is typically installed directly onto floor joists (usually insulated in-between), utilising standard chipboard screws and joint adhesive.

FINISHING A 6mm cement overlay board should be applied using co-polymer eva glue and screws prior to the application of any floor finishes. Laminates, hardwood flooring and carpets should be applied using a suitable underlay as per manufactures instructions. LVT type flooring normally requires a 2-3mm levelling compound applied to the cement backer board to smooth out join lines and screw heads.

SUITABILITY Chip-UFH Board is suitable for new build or retro fit installations, and the standard pattern board is normally available from stock.

PLEASE NOTE: DELIVERY OF THESE BOARDS MAY TAKE 3-4 WORKING DAYS
