Salus 5 Zone Wired Wiring Centre For Underfloor Heating

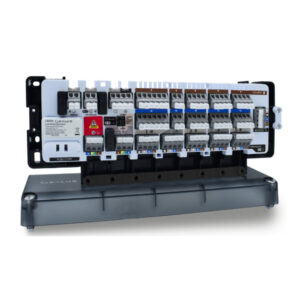

The CB500 control box is the main element of the underfloor heating / cooling control system.
It has a built-in module that controls the heat and cool sources. The control box allows you
to control 5 different zones. Number of controlled zones can be increased up to 15 zones by
using additional CB500X extension modules (CB500 main control box + two CB500X extension
modules). Each individual zone can be operated by one thermostat. Thermostat which require
230V power supply have to be powered directly from control box. The CB500 has voltage-free
outputs designed to control a boiler, heat pump or chiller. It allows you to switch between
heating and cooling modes. It is equipped with 230V voltage outputs for a pump and
actuators. The spring clamps provide quick and convenient wiring connections. The control box
is designed to work with NC (normally-closed) type actuators. It is recommended to mount it
on a surface or on a DIN rail.
