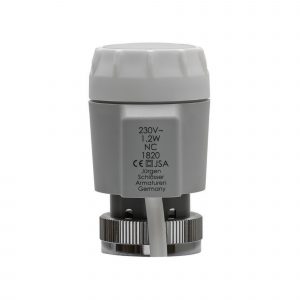

230v Underfloor Heating Actuator

Thermal Actuator 230v normally closed

• Compact Design
• Easy to mount
• Slim Design
• IP54
• 2 wire Config
• M30 Thread

• 100 N Force
• 4.5 mm Stroke
• Good visibility if open or closed
• Normally Closed „NC“
• Overall width 39 mm
• M30x1,5
• Noiseless
• Rotating knob for manual operation at any time
• Easy installation and maintenance

Versions          NC = Normally Closed

Voltage            230 V AC +10%…-10% (50 Hz – 60 Hz),

Operating power         1.2 W

Max. inrush current    300 mA at 230V

Operating current       5mA at 230V

Closing- and opening times ca. 170 sec.

Stroke  4.5mm

Force   100N

Fluid temperature       Max. 100°C

Storage temperature  -25°C to +60°C

Ambient temperature Max. 60 °C

Degree / Class of Protection   IP 54

Degree of contamination        II

CE-conformity According to EN 60730

Connection cable / length      PVC, 2×0,75 mm, Length 0,8 m, White

Adaptation      M30x1,5

Material          PE

Housing colour            White/Light Grey

Over-tension category            II

Over-tension stability Min. 2500 V according to EN 60730-1

Ball pressure test        90°C
