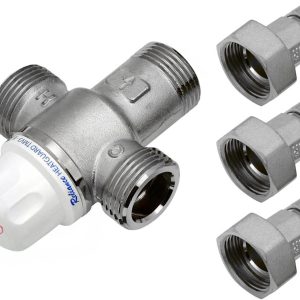

Reliance 15mm 2in1 HEATGUARD TMV3 HEAT160015 Hot and Cold WRAS Approved

Heatguard TMV3-8 A highly advanced TMV3 approved thermostatic mixing valve for use in basin, shower, bidet and high pressure bath fill applications (above 1 bar). The valve is designed to control the mixed water outlet temperature to within +/- 2ﾟC regardless of fluctuations in the temperature and pressure of the hot and cold water supplies, and to shut the mixed water outlet instantly in case of hot or cold water failure*
Fully approved by the WRAS under the TMV3 scheme to the DO8 specification for basin, shower, bidet, and high pressure bath fill applications Rapid thermostatic failsafe on either cold or hot supply failure protects the user from extreme temperature dangers. Unique, purpose-built temperature adjuster tool prevents unauthorised tampering. Provides extreme mixed water temperature stability under changing supply conditions.

Features and benefits

• Rapid Shutdown on Hot or Cold Supply Failure TMV3 approved D08 thermostatic mixing valve
• Suitable for basin, shower, bid and bath fill outlet applications
• Rapid thermostatic failsafe on either cold or hot failure
• Anti-tamper cap – requires included adjuster too, WRAS Approved
• Includes 2 in 1 adaptors Fittings for 15mm outlets Outlet temperature range of 38-46°C#

Please Note *Supply conditions must remain within limits stated Approvals WRAS TMV3 Basin, Bath & Shower Valves A range of thermostatically controlled mixer valves all capable of operating with a hot/cold or cold/hot pressure ratio imbalance of up to 10:1, All units incorporate check valves to prevent cross-flow between supplies, and strainers to reduce damage due to contamination. Connections are via the compression fixings using either 15 or 22mm pipe.

Bar Pressure:16 bar
Brand: Reliance Valves
Manufacturer Guarantee: 1 Year Guarantee Max.
Working Pressure: 16 bar Model NoHEAT160005
Pack Size: 1 Pieces in Pack/Case1
Product Diameter: 15 mm
Product Type: Heatguard 2-in-1 Thermostatic Mixing Valve Temperature
Range: 38-46 °
