Water Underfloor Heating Thermostatic Mixing Valve Set – Manifold Control Valves
£114.99 inc. VAT
| Quantity | Price | Discount |
|---|---|---|
| 1 | £114.99 | 0% |
| 2 - 4 | £111.54 | 3% |
| 5+ | £109.24 | 5% |
SKU: ZL-2536 Categories: Manifold & Pump Parts, Pumps & Pump Packs, Underfloor Heating Valves Tags: Manifold Control Valves, mixing valves, thermostatic mixing valves, thermostatic valve, ufh valve, valves

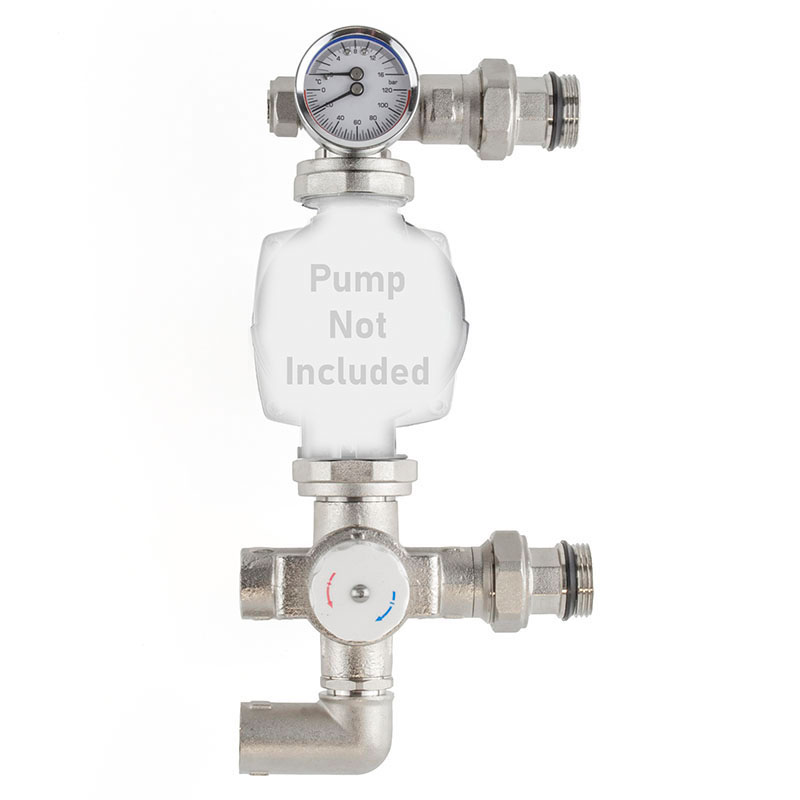

Water Underfloor Heating Thermostatic Mixing Valve Set – Manifold Control Valves
Underfloor Heating Pump Mixing Valves – Manifold Control Valves
Item Description:
This mixing valve is designed to work in conjunction with a pump blender to provide temperature controlled water to an underfloor heating manifold.
High quality brass fittings with nickel plating for aesthetics.
Features:
- Compact bolt on unit providing quick and simple installation
- Easy to set up with adjustable temperature range
- Control flow temperatures to +/- 2 degrees Celsius even with fluctuating temp. and flow from the boiler
- 1″ BSP Male fittings for connection to the manifold
- 3/4″ Female BSP fittings for connection to the flow and return loops
Item Specifications:
- Maximum Static Pressure: 10 bar
- Maximum Temperature: 90 degrees Celsius
- Adjustable Control Range: 35 degrees Celsius to 65 degrees Celsius
Technical Information
| Technical data | |
|---|---|
| Dimensions | H 276mm; W 155mm; D 125mm |
| Factory set mixed water temperature | 45°c |
| Min working temperature | 35°c |
| Max working temperature | 65°c |
| Media | Water |
| Manufacturing Standards | ISO9001, ISO14001, CE, TUV SUD, WRAS |
