Grundfos UPM3 Flex AS Pump & Thermostatic Mixing Valve Set
UPM3 FLEX AS is a flexible solution for boiler systems now and in the future. It is designed to work both with and without PWM signal, allowing you to upgrade your systems without having to change the circulators.
Made to integrate – easily and efficiently
The UPM3 range comes with:
- Optimised design fit for easy accessibility
- Intelligent configuration
- High efficiency (exceeding the Ecodesign benchmark level)
- Unmatched reliability
Key features:
- Integrated OEM high efficient circulator
- For flexible use in appliances without PWM speed control with 4 speeds
- Or in applications with externally controlled signal with standard PWM profile A for 4 MAX curves
- Exceeding benchmark level of the Ecodesign
| Brand | Grundfos |
|---|

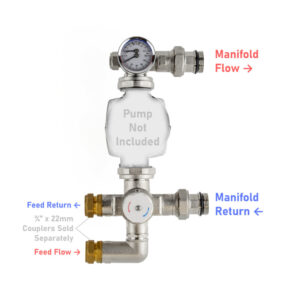

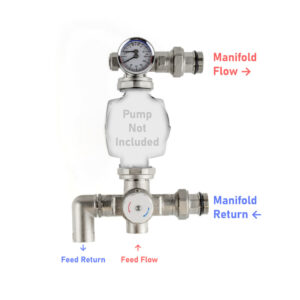

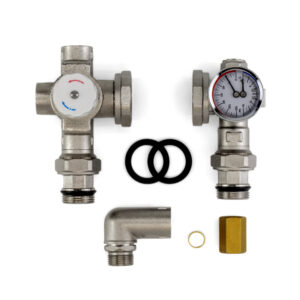

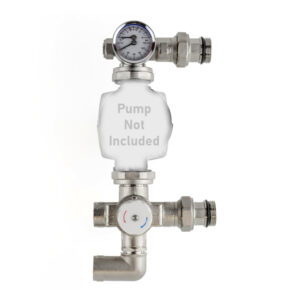

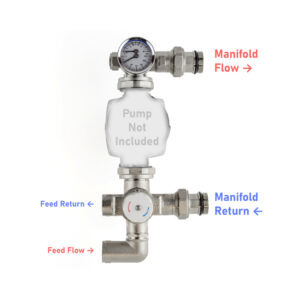

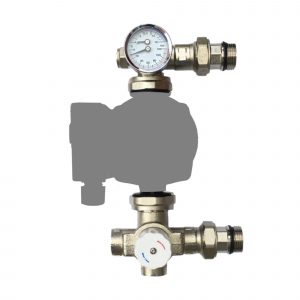

Mixer Valves Description
Item Description:
This mixing valve is designed to work in conjunction with a pump blender to provide temperature controlled water to an underfloor heating manifold.
High quality brass fittings with nickel plating for aesthetics.
Features:
- Compact bolt on unit providing quick and simple installation
- Easy to set up with adjustable temperature range
- Control flow temperatures to +/- 2 degrees Celsius even with fluctuating temp. and flow from the boiler
- 1″ BSP Male fittings for connection to the manifold
- 3/4″ Female BSP fittings for connection to the flow and return loops
Item Specifications:
- Maximum Static Pressure: 10 bar
- Maximum Temperature: 90 degrees Celsius
- Adjustable Control Range: 35 degrees Celsius to 65 degrees Celsius
Mixing Valves Technical Information
| Technical data | |
|---|---|
| Dimensions | H 276mm; W 155mm; D 125mm |
| Factory set mixed water temperature | 45°c |
| Min working temperature | 35°c |
| Max working temperature | 65°c |
| Media | Water |
| Manufacturing Standards | ISO9001, ISO14001, CE, TUV SUD, WRAS |
