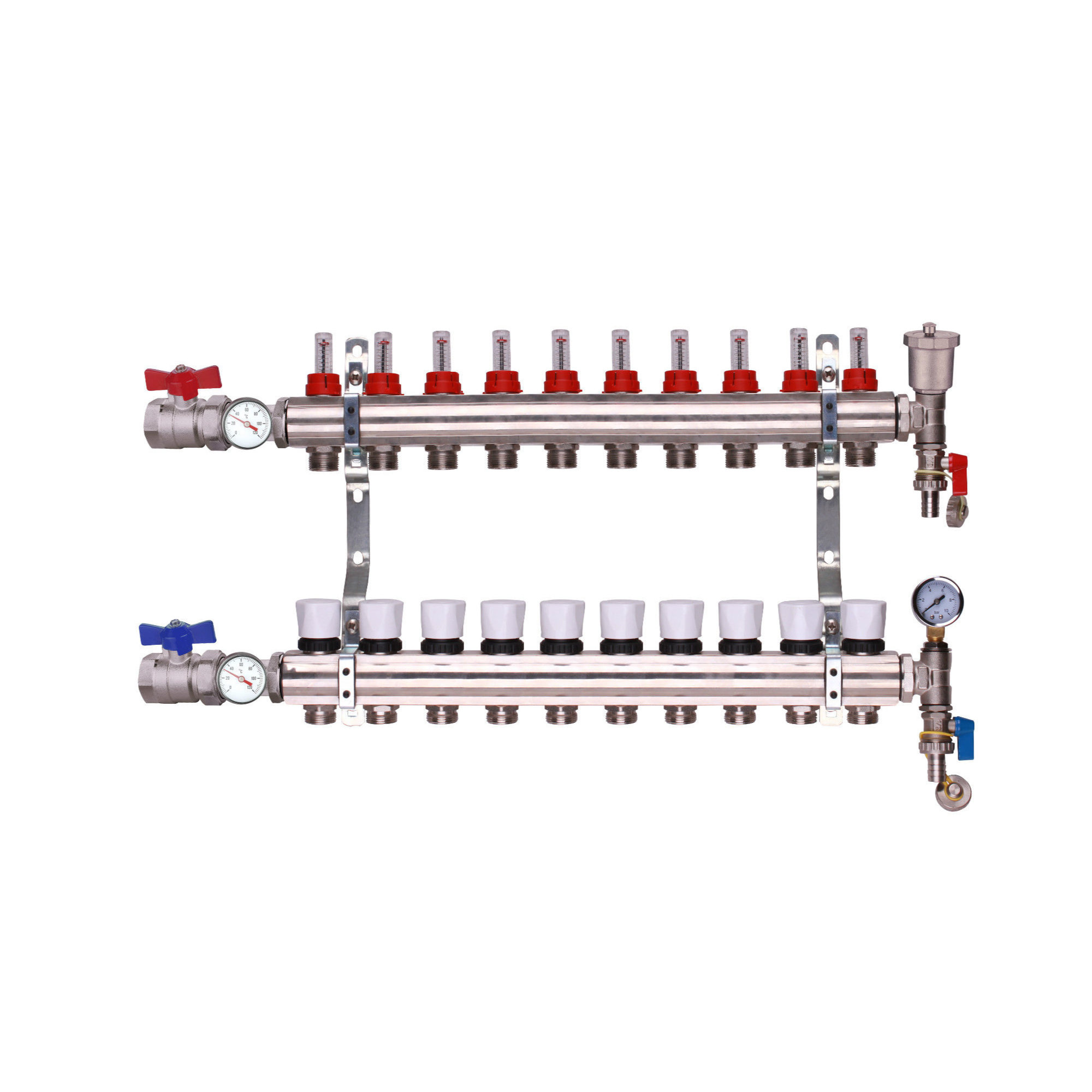

10 Port Premium Brass Bodied Underfloor Heating Manifold With Temperature Gauge, Isolation Valves, Auto Air Vent & Pipe Connectors

10 Port Premium Brass Bodied Underfloor Heating Manifold With Temperature Gauge, Isolation Valves, Auto Air Vent & Pipe Connectors - Image 2

10 Port Premium Brass Bodied Underfloor Heating Manifold With Temperature Gauge, Isolation Valves, Auto Air Vent & Pipe Connectors - Image 3

10 Port Premium Brass Bodied Underfloor Heating Manifold With Temperature Gauge, Isolation Valves, Auto Air Vent & Pipe Connectors - Image 4

10 Port Premium Brass Bodied Underfloor Heating Manifold With Temperature Gauge, Isolation Valves, Auto Air Vent & Pipe Connectors - Image 5

10 Port Premium Brass Bodied Underfloor Heating Manifold With Temperature Gauge, Isolation Valves, Auto Air Vent & Pipe Connectors

Name: 10 Port Premium Brass Bodied Underfloor Heating Manifold With Temperature Gauge, Isolation Valves, Auto Air Vent &amp; Pipe Connectors
Brand: TUFHS
SKU: ZL-112510TK-
Availability: InStock

SKU: ZL-112510TK- Category: Underfloor Heating Manifolds Tags: manifold-only, ufh manifold, under floor manifold, underfloor heating manifold, underfloor manifolds

In Stock

Add to wishlist

£299.99 inc. VAT

10 Port Premium Underfloor Heating Manifold With Temperature Gauge, Isolation Valves, Auto Air Vent & Pipe Connectors

Our underfloor heating manifolds have brass bodies giving them excellent performance and reliability.

These premium manifolds are manufactured to the international manufacturing standard ISO9001 to ensure quality at all times.

Available with a choice of pipe connectors to fit most Pert-Al-Pert and EVOH pert pipe sizes – Please select the size you require when ordering.

Our premium manifolds come with:

1x flow manifold & 1x return manifold
A Flow meter per port
An Isolation valve per port
Isolation ball valves with temperature gauge
Drain & fill points
Automatic air vents
Pre-fitted mounting bracket
Eurocone pipe connectors (please select the size you require)

Number of Ports	2 Ports – For Area Up To 40m2, 3 Ports – For Area Up To 60m2, 4 Ports – For Area Up To 80m2, 5 Ports – For Area Up To 100m2, 6 Ports – For Area Up To 120m2, 7 Ports – For Area Up To 140m2, 8 Ports – For Area Up To 160m2, 9 Ports – For Area Up To 180m2, 10 Ports – For Area Up To 200m2, 11 Ports – For Area Up To 220m2, 12 Ports – For Area Up To 240m2

Manifolds technical Data

Technical data
Material	Nickel plated brass
Usual working temperature	82°c
Maximum working pressure	10bar
Maximum working temperature	105°c
Maximum test pressure	10bar
Suitable For	Water
Manufacturing Standards	ISO9001, ISO14001, CE, TUV SUD, WRAS
