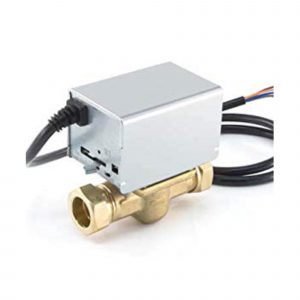

Motorised Zone Valve 22mm 2 Port

Our motorised zone valve comes with a pre-wired cable.

Key features:-

  • Manual metal operating lever for stability and strength
  • Spring return action
  • Powerhead can be replaced without draining down
  • Quiet operation, minimal power consumption

Technical Specifications:

Technical Specifications:

– Supply Voltage: 220-240VAC, 50/60Hz
– Power Consumption: 5W
– Cable Length: 1m
– Fluid Temperature: +5°C to +88°C
– Operating Temperature: 5°C to +50°C
– Flow Direction: As per arrow on valve body
– Auxiliary Switch Rating: 250VAC 4A
– Response Opening: 12 seconds
– Reponse Closing: 5 seconds
– Max. Static Pressure: 8 bar
– Max. Close-off Pressure: 1 bar

WARNING! ALWAYS ISOLATE THE AC MAINS SUPPLY BEFORE REMOVING OR REFITTING THE ACTUATOR ASSEMBLY. THIS ACCESSORY MUST BE FITTED BY A COMPETENT PERSON, AND INSTALLATION MUST COMPLY WITH THE GUIDANCE PROVIDED IN THE CURRENT EDITIONS OF BS7671 (IEE WIRING REGULATIONS) AND PART ‘P’ OF THE BUILDING REGULATIONS.
