Reliance 2 Port 22mm Zone Valve – Hard Wired

Reliance Two Port Zone Valves are designed for use in heating systems to isolate zones or equipment when the motor within the zone valve is de-energised. A Two Port Zone Valve can shut off water flow or control & regulate water flow through domestic and light commercial central heating systems. Designed with an easy to use clip-on detachable head, pre-moulded plug & play cables and a metal manual operating lever, the Reliance Two Port Zone Valves are durable and quick & easy to install to new systems or retrofit to existing systems.

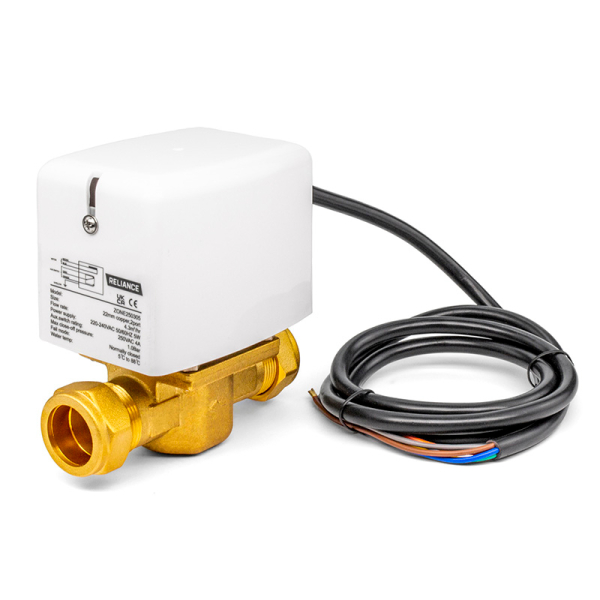

Our motorised zone valve consists of a spring-return actuator that is attached to a 2-port valve body. 240V Two Port Zone Valves for use in heating systems to isolate zones or equipment when the motor is de-energised.

Easy to use, clip-on detachable head hardwired cable supplied to connect to motorised head Metal manual operating lever for strength and stability. The motorised head can be retrofitted to other manufacturers valve bodies.

• Power supply 220-240V, 50/60Hz,5W
• System fuse rating 3A Maximum
• Auxiliary switch rating 3A 250VAC
• Water temp 5°C to 88°C
• Max. differential pressure 0.69 bar
• Cable length 1m
• Max. pressure 6 bar Electro-Magnetic
• Compatibility Directive 2004/108/EC Low Voltage Directive 2006/95/EEC EC Marking Directive 93/68/EEC
