ResoFoam10 Acoustic Solution For Under Screed Applications – 60m2 Kit

ResoFoam10 is a complete acoustic solution for under screed applications. When installed, the system isolates the screed from the sub-floor and significantly reduces the transmission of impact noise.

The ResoFoam10 closed cell polyethylene rolls feature thermoplastic coupling technology at their core, giving the system superior tensile and compressive strength over other 10mm polyethylene systems. The acoustic layer has greater resistance to snags and rips that may occur during installation on site.

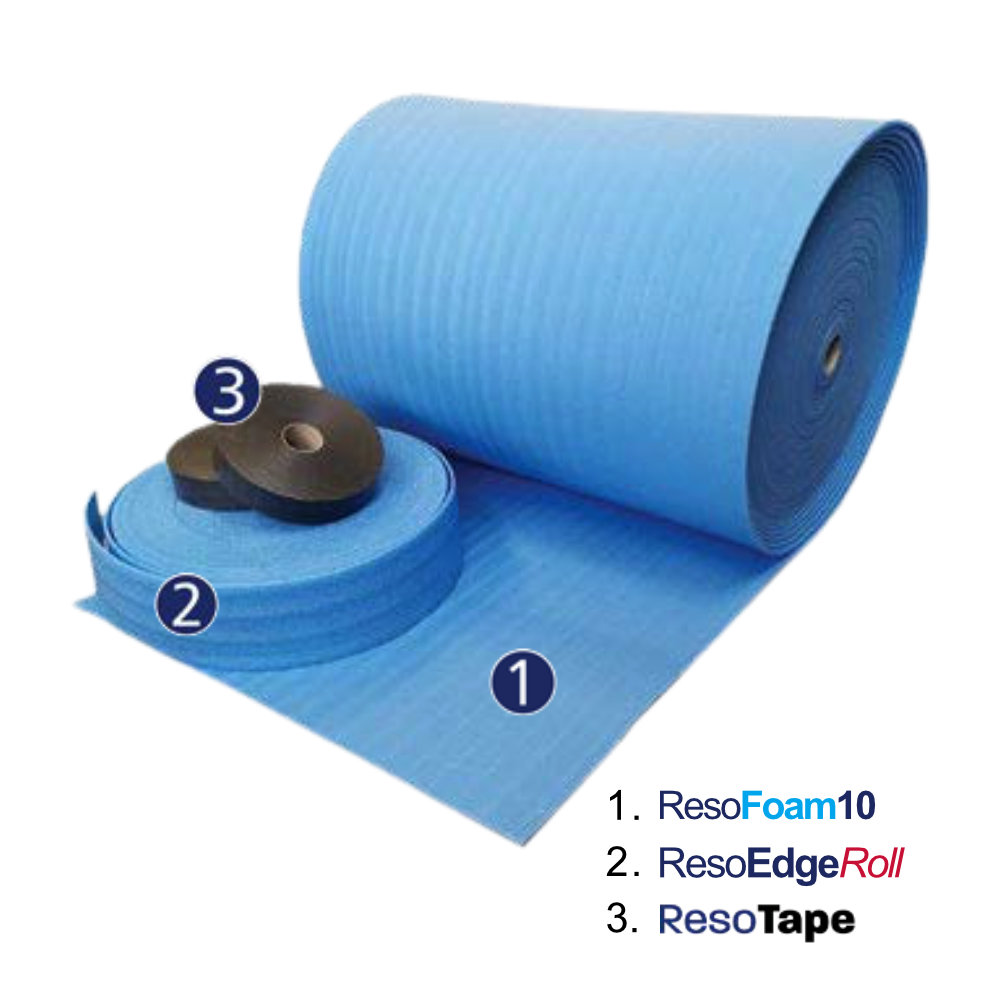

Kit comprise of:

• 1 x ResoFoam10 Roll – The rolls are laid directly on the concrete floor surface.
  The sand & cement, or flowing screed is laid on top.
• 1 x ResoEdge Roll – is installed around the floor perimeter to
  isolate the floor and reduce the risk of acoustic flanking.
• 2 x ResoTape – The acoustic joining tape is used to provide an air tight seal
  where the ResoFoam10 layers overlap and where the ResoEdge and ResoFoam layers overlap around the edges.

Pack Weight: 21 Kg

ResoFoam Roll Dimensions
1200mm (W) x 50 (L) x 10mm (H) / 60 m² per roll

ResoEdge Roll Dimensions
8mm (W) x 200mm (H) x 50m (L)

ResoTape Dimensions
70mm (W) x 40m (L) x 2.5mm (H)

Thermal Conductivity
0.038 W/mK

Working Temperature
-60 / +80 degrees C

Water Absorption
0.02 – 0.03 mg/cm²
Zero VOC / Zero CFC / Zero ODP / GWP <5
