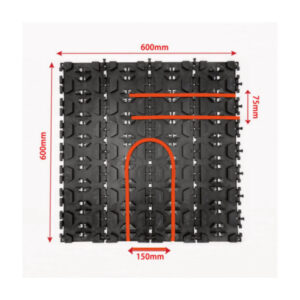

15mm Low Profile Underfloor Heating Overlay Panels 600x600x15mm For 10-12mm Pipe

The Lowfix Panel introduces a revolutionary pipe retention system that offers an incredibly rapid and effortless installation process, catering to a diverse array of applications such as floor heating, wall heating, and ceiling cooling. This innovative solution guarantees both simplicity in utilization and efficiency in setup.

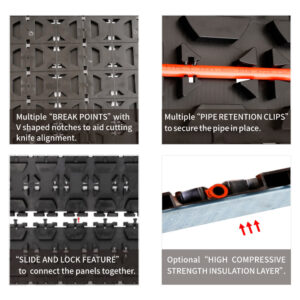

Features & benefits of the trays

• Multiple break-points with v-shaped notches to help with cutting
• Multiple pipe retention clips to secure pipes

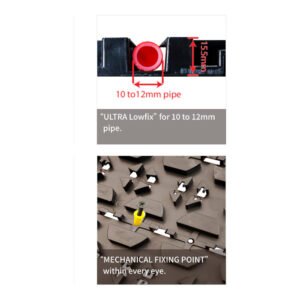

• Ultra low profile for use with 10-12mm water pipes
• Slide and lock feature
• Can be laid over XPS insulation layers
• Mechanical fix point holes for screwing crates down

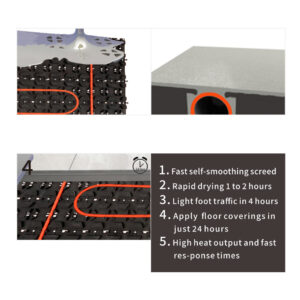

Features & benefits of the system

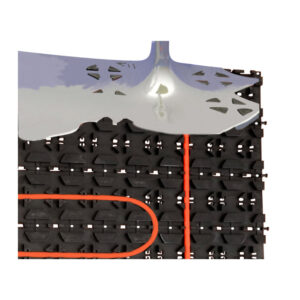

• Fast self smoothing screed
• Rapid drying time 1 to 2 hours
• Light foot traffic in 4 hours
• Apply floor coverings in just 24 hours
• High heat output and fast response times

Installation

For carpet or vinyl floor coverings, a minimum underfloor heating screed depth of 18mm will be required. At this depth the screed will cover the upper surface of the panels by a minimum of 3mm which is necessary for sufficient point load resistance to be achieved.
