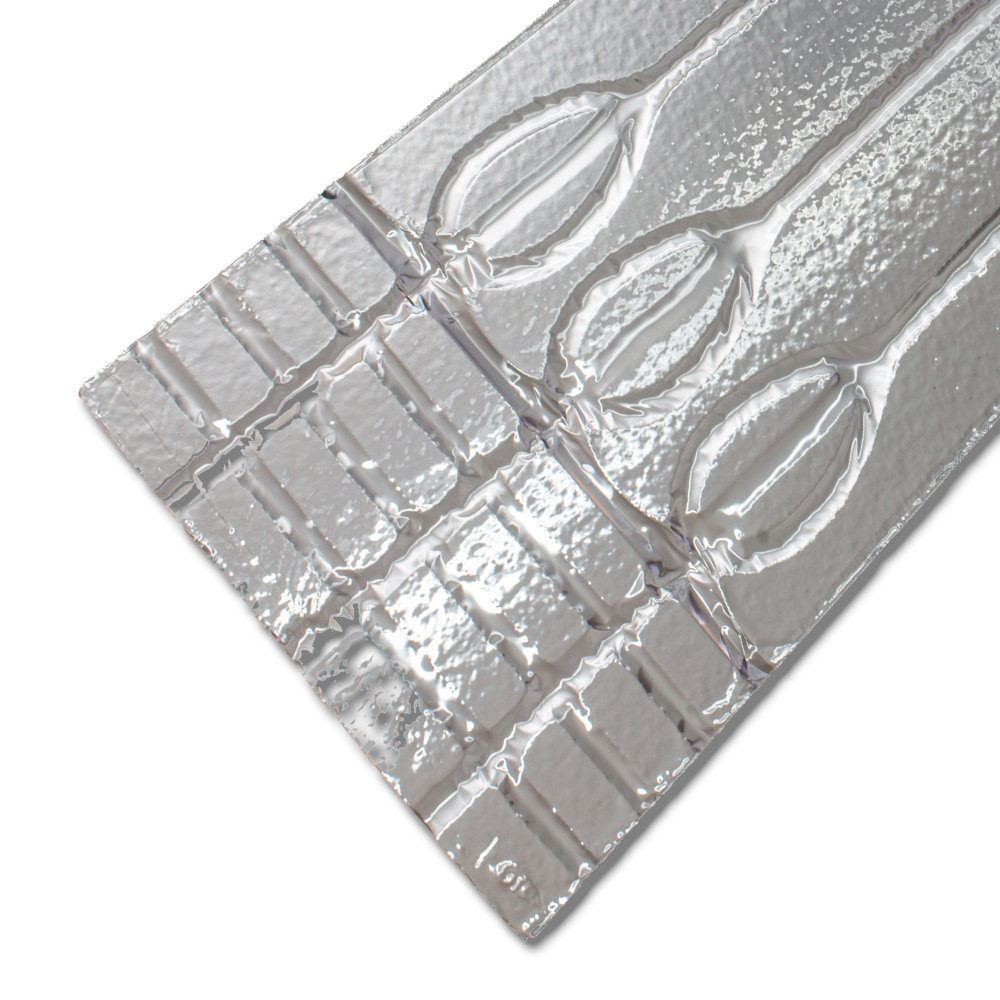

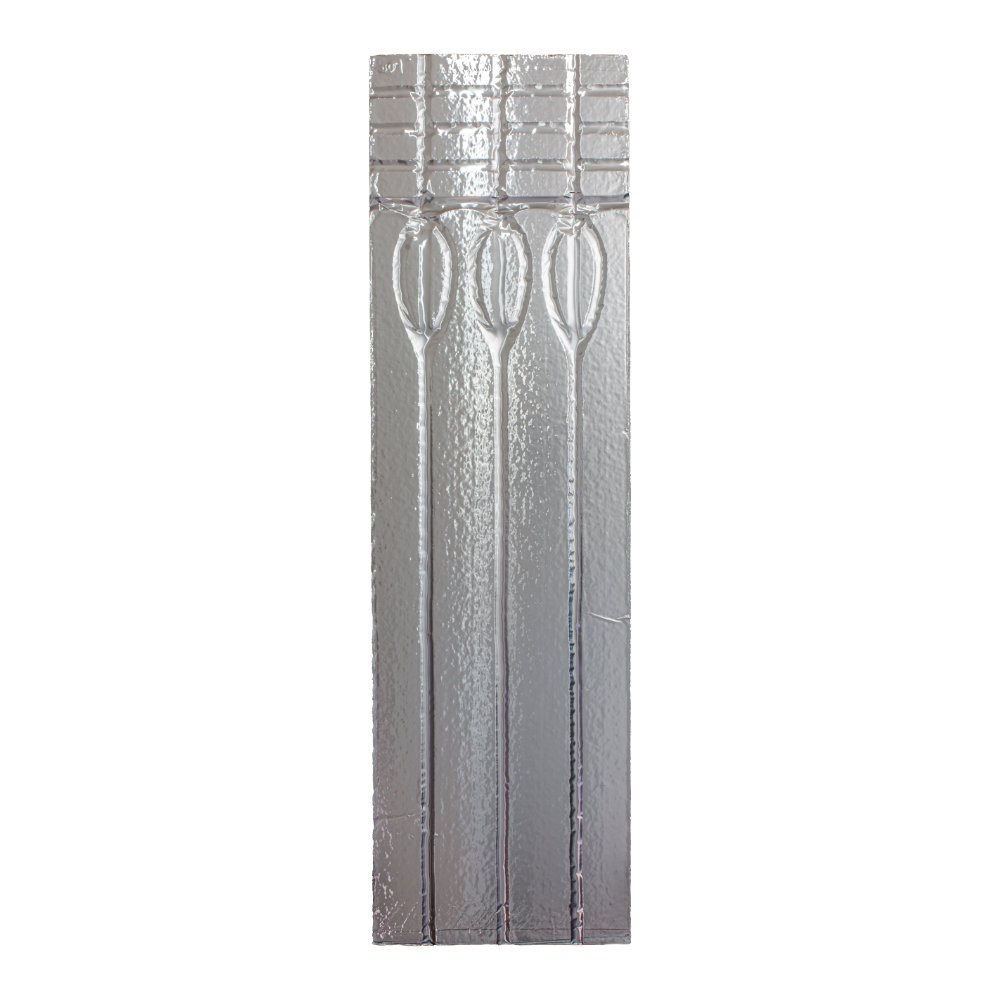

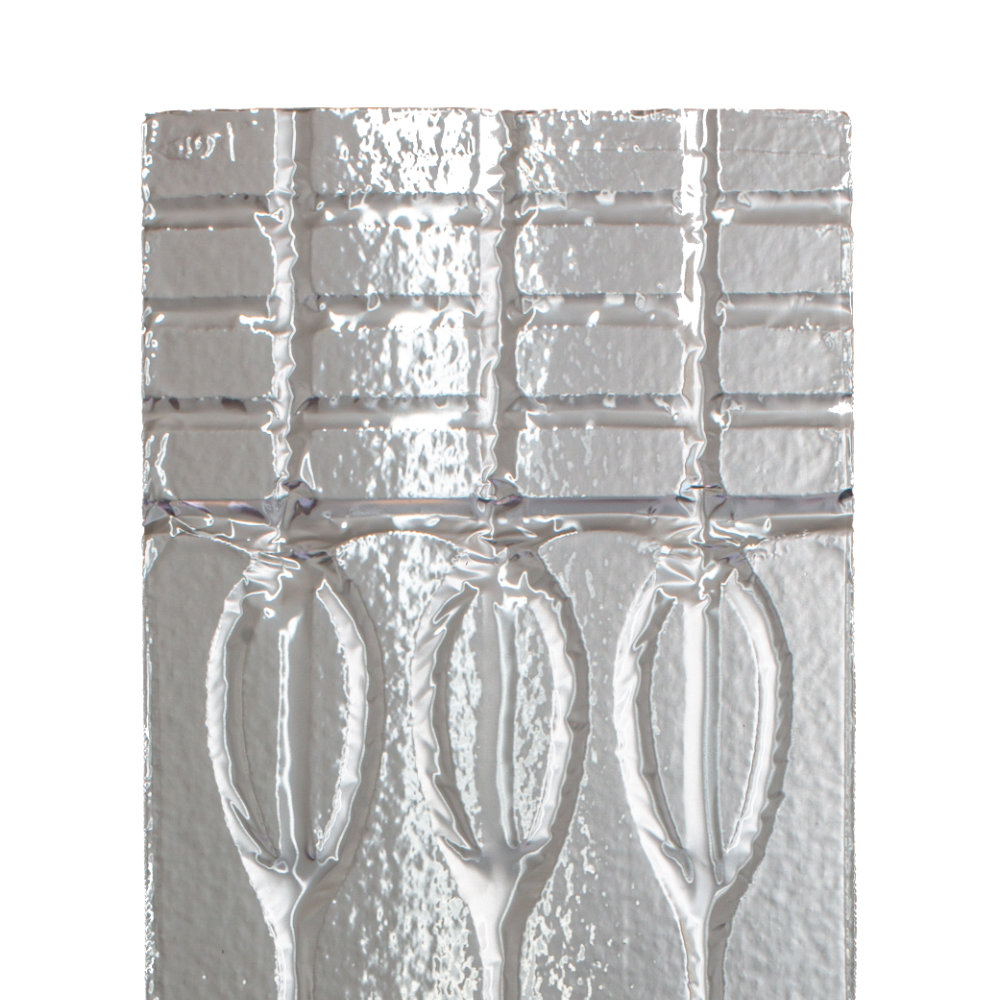

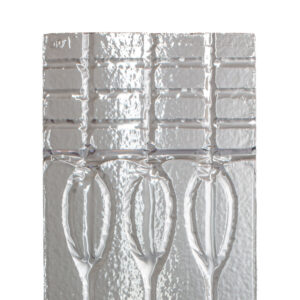

Between Joist UFH Panel – Foiled 150KPA EPS – for 12mm or 16mm pipe – 1200 x 350mm x 50mm

Fit between joist panels’ are CNC routed and faced with a high performance aluminium foil facing to achieve excellent heat outputs.
Routing patterns and design can be adjusted for individual projects requirements, such as options on pipe work centres of 100mm and 200mm apart.

Specification:

Aluminium Foil thickness: 50 Micron (mu)
Compressive Strength: 150kPa
Thermal Conductivity: 0.035 (W/mk)
Declared Performance: BS EN 13163
Fire Classification: Euro Class F
Board Size: 1200mm x 350mm (0.42m²)
Board Thickness: 50mm

PLEASE NOTE: DELIVERY OF THESE BOARDS MAY TAKE 4-5 WORKING DAYS
