Gypdeck 18+UFH Acoustic Underfloor Heating Dry Screed Floor Panel Solution – Robust Detail Compliant

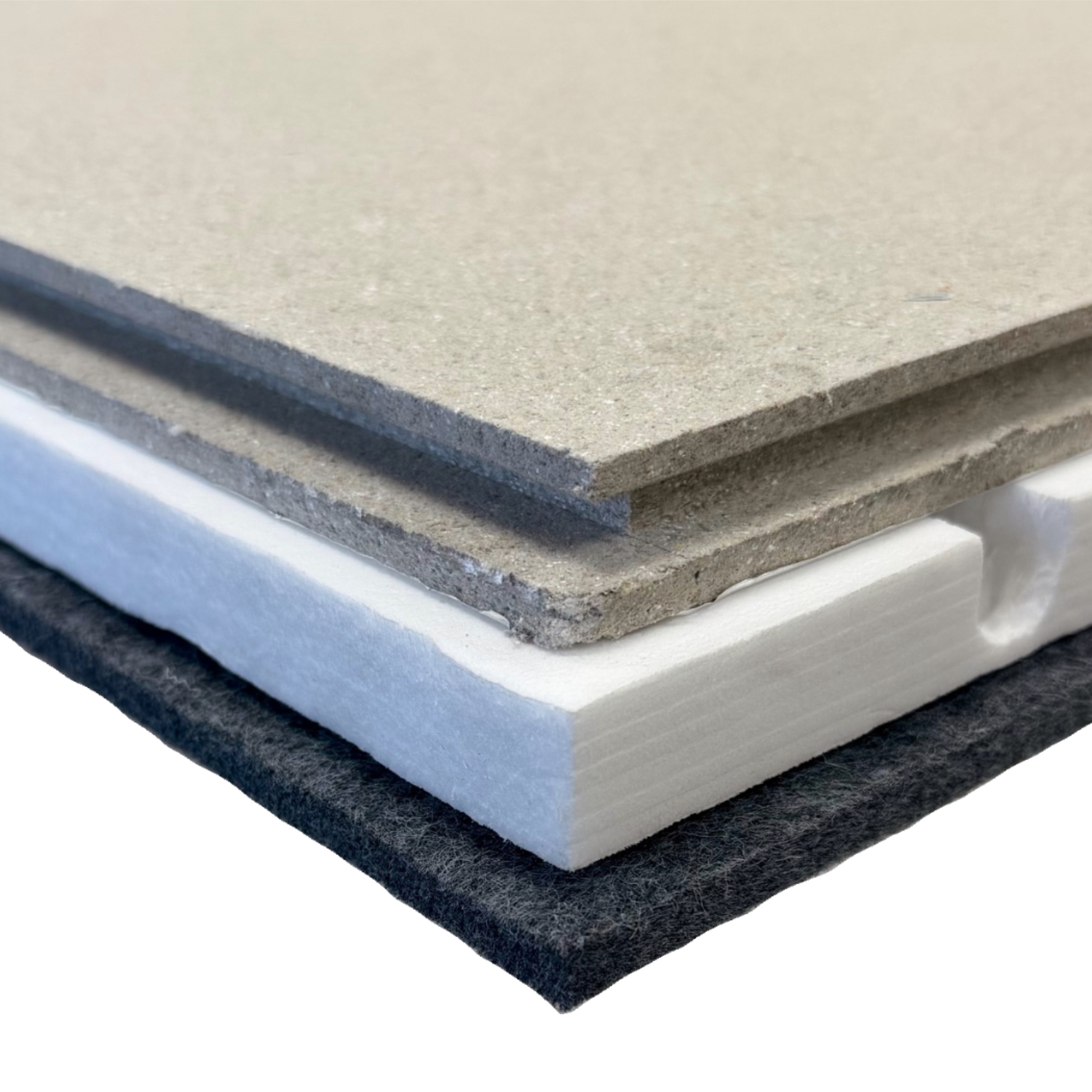

The Acoustic underfloor heating system Comprises of 3 main components, no wet trades required:-

• A 10mm Acoustic Resilient Fleece Layer Polyester Fibre 1200 x 600 x 10mm

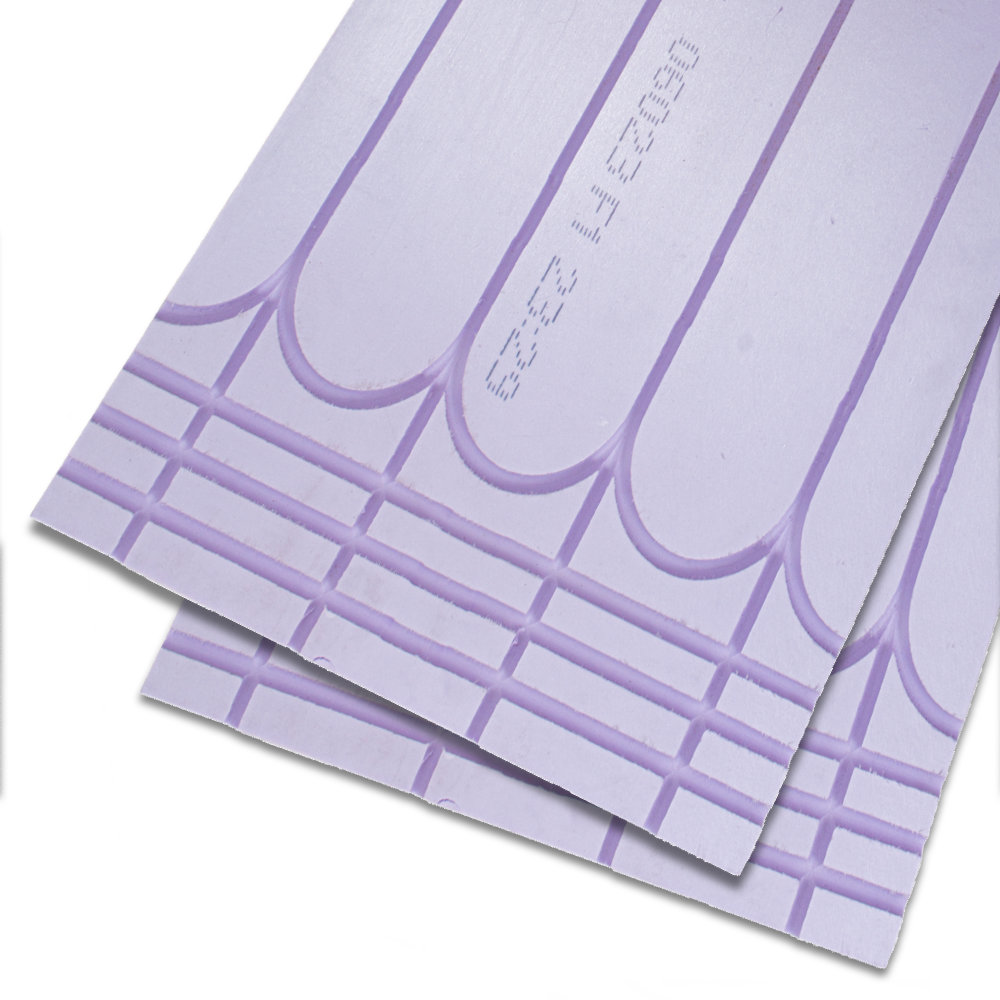

• A Low Profile 20mm Plain XPS Pipe Carrier UFH panel 1200 x 600 x 20mm
• Top layer 18mm thick Gypsum Dry Deck Panel 1200 x 600 x 18mm

Gypdeck 18mm is a high-density, ‘dry screed’ panel designed for flooring. This dry screed system offers significant time-saving benefits compared to traditional wet screed solutions. The boards’ low thermal resistance makes them highly effective for underfloor heating applications.

Soundproofing & Underfloor Heating: Combined with a 20mm XPS Routed insulation boards, and or a 10mm Fleece resilient layer this creates a complete acoustic and underfloor heating system. These panels are ideal for student accommodation, care homes, residential properties, and care facilities due to their exceptional features:

• 18mm Gypdeck consists of an ultra high density recycled gypsum fibre panel.
• 0.72m2 per panel
• Panels per pallet – 50
• Thermal conductivity 0.038 W/mk
• Density 1200 kg/m3
• Excellent impact and airborne sound reduction*
• Low thermal resistance for optimal floor heating conditions**
• High-density boards can directly accept ceramic and porcelain floors without a decoupling mat

Additional Benefits:

• Dry system reduces build times
• Non-combustible; does not burn when exposed to fire

Robust Detail Compliant:

• E-FC-1 (FFT 4)
• E-FC-2 (FFT 4)
• E-FS-1 (FFT 4)
