Board Material
Gypdeck 28 – Dry Screed Acoustic Flooring Panel – Soundproofing for Underfloor Heating – 18mm Gypsum Board With 10mm Fleece – Robust Detail Compliant
Key Benefits
- Excellent impact and airborne sound reduction
- No screws, tongue and groove edge, high compressive strength
- High density boards accept ceramic and porcelain floors directly without a decoupling mat
- Dry system reduces build times. Does not burn when exposed to fire (non-combustible – A1 fire rating)
MINIMUM ORDER 10 BOARDS
In Stock
£34.99 inc. VAT
| Quantity | Price | Discount |
|---|---|---|
| 10 - 49 | £34.99 | 0% |
| 50 - 74 | £34.29 | 2% |
| 75 - 99 | £33.94 | 3% |
| 100 - 199 | £33.59 | 4% |
| 200+ | £33.24 | 5% |

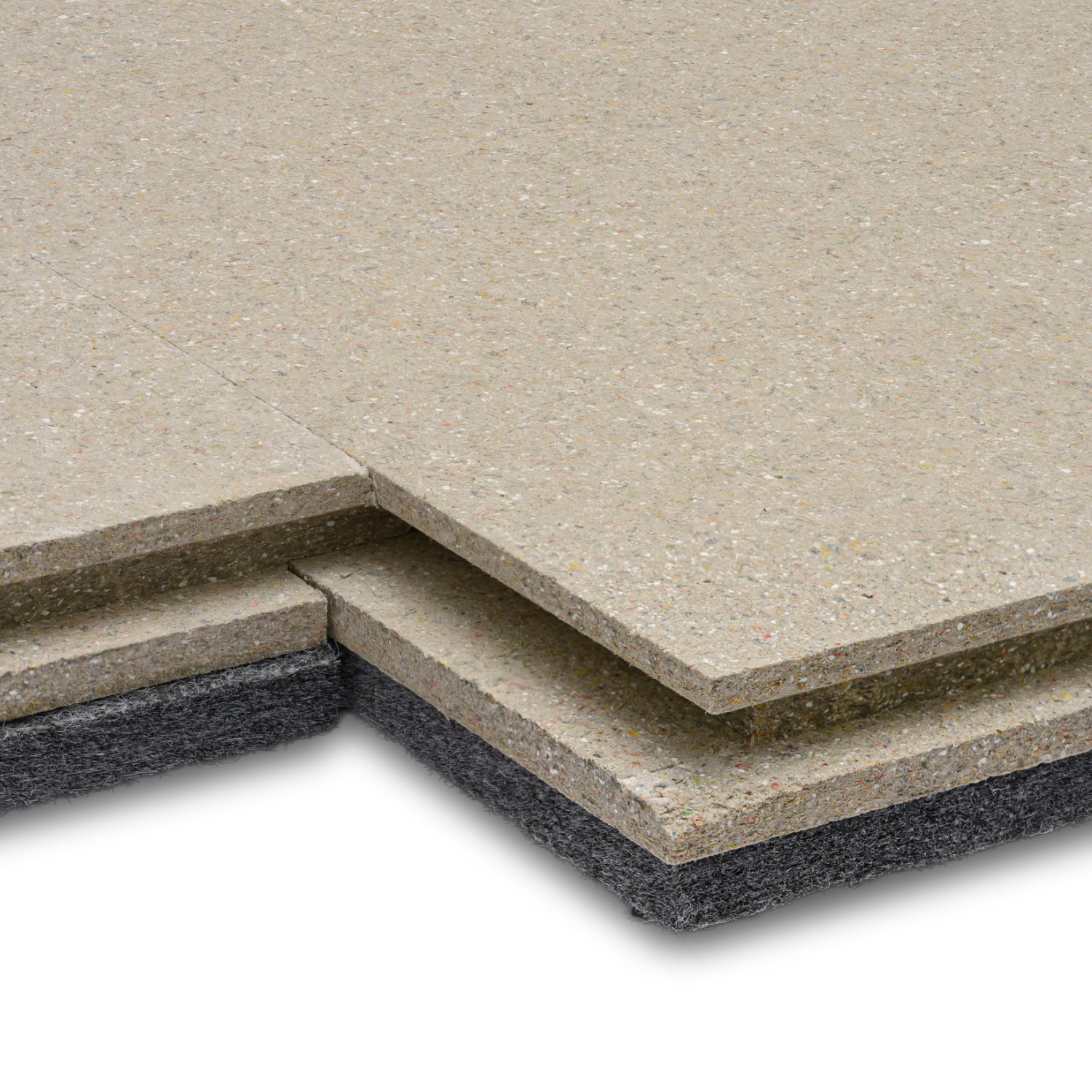

Gypdeck 28 – Dry Screed Acoustic Flooring Panel – Soundproofing for Underfloor Heating – Robust Detail Compliant
A high density, dry screed acoustic panel for floors – Ideal for areas subjected to high levels of foot traffic and point loading.
The panels are installed below the floor finish and deliver excellent airborne and impact sound reduction. Noise reduction benefits vastly improve the living conditions for occupants, making them ideal for student accommodation, care homes and residential properties.
The panels incorporate a 10mm layer of a very high performance recycled soundproofing resilient layer.
The dry screed panels require no wet trades to install, significantly reducing build times. At only 28mm thickness, the panels significantly reduce floor height in comparison to 40mm-50mm wet screed systems
- 18mm top layer consists of an ultra high density recycled gypsum fibre panel
- 10mm ResoFleece fibre resilliant layer provides excellent impact sound performance
| Acoustic Performance By Floor Type/Build-up | |||||
| Concrete In-situ Floor | Metal Web Timber Joisted Floor | Steel Joisted Floor | Profiled Metal Deck Floor | Timber I-Joisted Floor | |
| Airborne Sound Performance DnT,w + Ctr |
51db | 50db | 50db | 52db | 50db |
| Impact Sound Performance LnT,W |
47db | 56db | 56db | 47db | 56db |
| Impact Noise Improvement ΔLw | 22db | na | na | na | na |
| Product Type | Gypsum Acoustic Floor Panel |
|---|
Data Sheet
Floor Finishes Guidance
