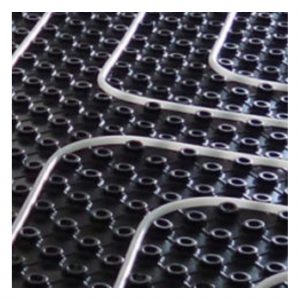

Underfloor Heating Tray – Castellated Plastic Pipe Tray Panels For 12mm Pipe – 1220 x 820 x 15mm Sheets (0.98m2)
1220mm x 820mm x 15mm Castellated Floor Panels for Water Underfloor Heating System.
High Specification Castellated floor panels for fast installation of your water underfloor heating pipe (12mm)
Your pipe is clipped & held securely by the raised section ensuring even heat distribution across your floor.
• Total size 1220mm x 820mm x 20mm – Approx. 1m2 (0.98m2)
• Suitable for 12mm pipes
• Pipe Centres can be at 100mm, 150mm, 200mm & 250mm
• Easy to install
• Made from Recycled High Impact Polystyrene
• Minimum amount of waste
• Eliminates pipe contact with insulation
• Each Panel will cover approx. 0.96m² (when overlapped)
• Colour black / Non-adhesive – Loose lay
Instructions:
These trays are for in-screed systems – Use a minimum of 55mm liquid screed or 45mm fibre reinforced above the tray.
